HDPE large diameter steel pipe winding production line:


Plastic pipe winding pipe production line (often called PE steel-plastic composite pipe equipment), advanced design, fine workmanship. The use of efficient single-screw extruder, with advanced foreign transmission, low energy consumption and high output. Using PLC intelligent control, stable and reliable, high degree of automation. Developed a unique composite technology of steel, strip and pipe at the same time production, a molding, the strip is fully compounded in HDPE, no bubbles, do not fall off, free from corrosion of other media. Equipped with independent research and development of compatible winding cages, compatibility, large-diameter pipe production speed, quality and stability, the two production lines to cover the full range of DN200-DN3000 pipe production.

Plastic composite strip production line from the hanging machine, cutting machine, storage belt machine, straightening machine, high frequency heating mechanism, single screw extruder, strip operation control cabinet, strip extrusion die, strip shaping mold, Stereotypes, traction machine.

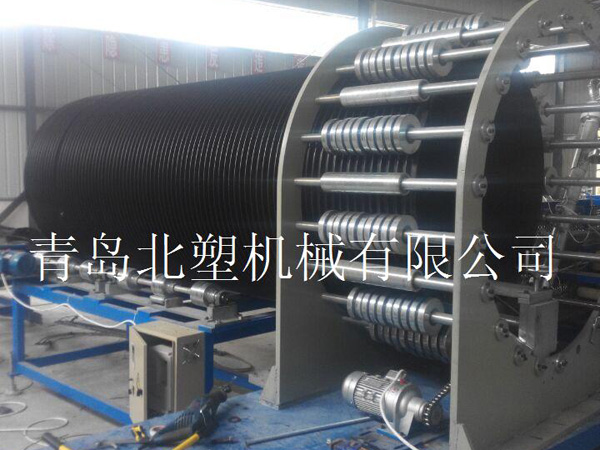

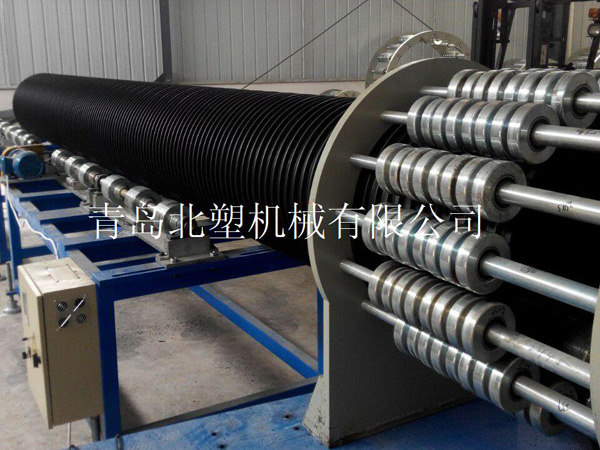

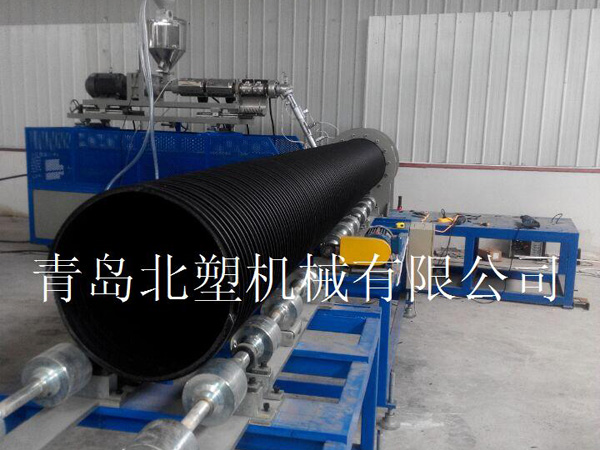

Pipe winding production line by the pipe operation control cabinet, electrode material extruder, hot air gun heater, belt conveyor, winding cage, pipe cutting saw, pipe conveyor composition.

Plastic composite strip using an original extruder molding production process, the strip straightening machine straightening, rust and high frequency heating into the single-screw extruder strip extrusion die and melt high-density poly Ethylene once the completion of the structure of the two composite materials, and by the strip stereotypes stereotypes Taiwan stereotypes, formed after cooling strip, strip by winding into a tube. After the composite plastic pipe winding structure with dimensional stability, uniform coating formation characteristics.


HDPE steel pipe winding equipment features:


Production speed, production range, product qualification rate, discontinuous production, small footprint, low production costs.
